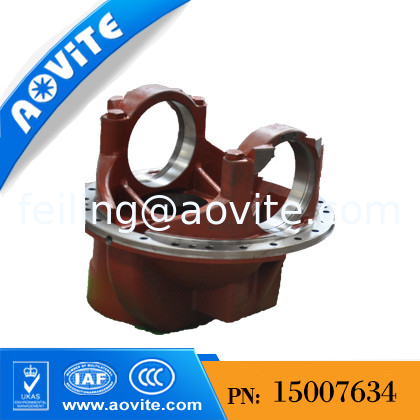

China Manufacturers Mining Dump Truck Spare Parts Differential Housing 15007634 For Terex TR100 differential assy

Aovite is a Professional Terex dump truck parts supplier

Company started in 1979 specializing in heavy duty mining parts

Terex mining truck parts include housing, Chassis parts ,Engine parts , Driveline parts ,Front axle parts ,Rear axle parts ,suspension

system ,Fuel system ,Steering system ,Braking system and so on .

Part in catalogue

REF QTY PART NO. DESCRIPTION FROM TO
001 002 00139230 SCREW
002 004 00223441 BOLT
003 001 15007603 PLATE
004 001 15315244 YOKE-ASSY
005 001 15007621 .SLEEVE
006 001 15007642 DIFFERENTIAL ASSY
007 004 09114897 .SCREW
008 003 00139191 .SCREW
009 001 15007635 .RETAINER
010 014 00271567 .BOLT
011 ASR 15007647 .SHIM (0.010 IN)
011 ASR 15007646 .SHIM (0.003 IN)
012 001 15000417 .SEAL
013 001 15235836 .CUP
014 001 15235835 .CONE
015 001 15019463 .GEAR-SET
016 001 15235837 .CUP
017 001 15235838 .CONE
018 ASR 15007650 .SHIM (0.010 IN)
018 ASR 15007649 .SHIM (0.003 IN)
019 001 15007634 .HOUSING
020 004 09192618 ..DOWEL-BUSHING
021 004 09216692 ..BOLT
A 022 ASR 09113457 .LOCKWIRE
023 004 09170517 .BOLT
024 002 09245142 .LOCK
025 002 09245234 .BEARING-ADJUSTER
B 026 024 09419496 .NUT
027 NOT USED
028 024 00223775 .BOLT
029 002 09427249 .CUP-BEARING
030 002 09428203 .CONE-BEARING
031 001 15019476 .CASE
032 008 09430296 ..BOLT
033 NOT USED
034 NOT USED
035 002 15334185 .WASHER
036 004 15334410 .PIN-DOWEL

037 002 09272352 .GEAR
038 001 09272346 .SPIDER
039 004 09272386 .PINION
040 NOT USED
041 004 00137393 .BEARING
042 001 09141860 O RING
NOTES:
A USE 18 GAUGE SOFT ANNEALED WIRE OR EQUIVILANT
B THE FOLLOWING REF NUMBERS ARE OMITTED FROM THIS SECTION
27,33,34 & 40
043 002 15303353 STUD
044 022 09250715 WASHER - HARDENED
045 002 09419493 LOCKNUT
046 020 00223453 BOLT
047 ASR 15305445 LOCTITE 7063
048 ASR 15333986 LOCTITE 518
